- Rated voltage:18kV
- Normal discharge current:10KA
- Creepage distance:630mm
- Usage:High Voltage
- Safety Standards:IEC
- Breaking Capacity:High
- Arrester:Arrester
- Place of Origin:CN;ZHE
- Brand Name:Yufly
- Model Number:YH10W-12 surge arrester

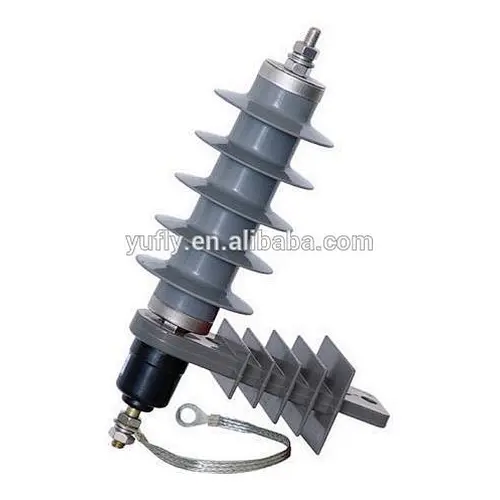

YH10W-11High voltage polymer metal-oxide lightning arrester surge arrester

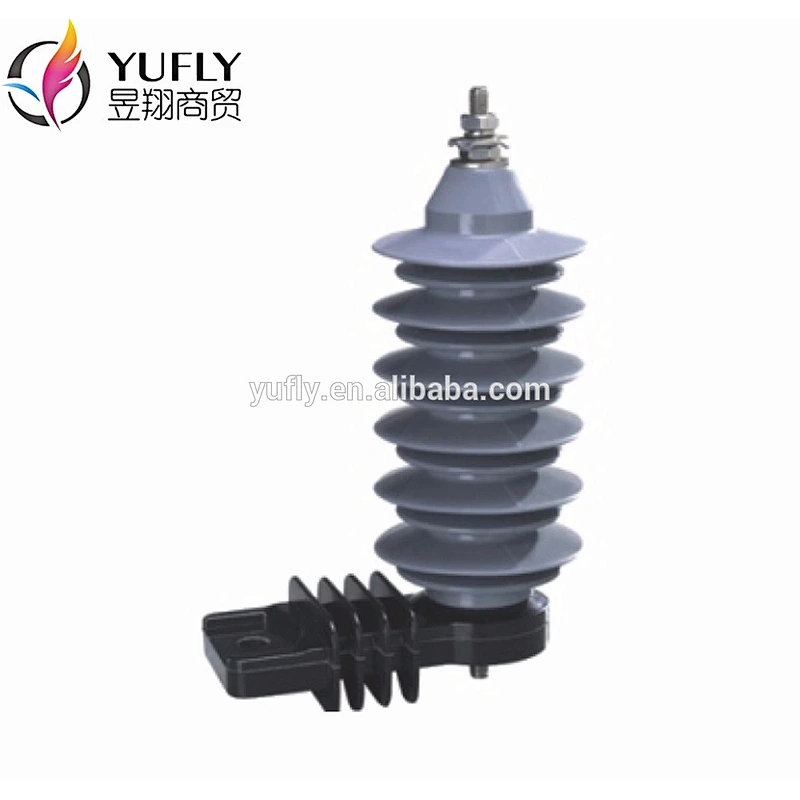

Polymer Housed Metal-oxide Surge Arrester without gaps nominal discharge current 10kA
Type | MOA rated voltage | MCOV | Current impulse residual voltage | 2ms rectangular withstand impulse current | 4/10us high withstand impulse current | |||||
1/4 us lightning current impulse | 8/20us lightning current impulse | 30/60 us switching current impulse | ||||||||
YH10W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 250 | 100 | |||
YH10W-6 | 6 | 5.10 | 22.6 | 18 | 16.8 | 250 | 100 | |||
YH10W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 250 | 100 | |||
YH10W-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 100 | |||
YH10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 100 | |||
YH10W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 250 | 100 | |||
YH10W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 250 | 100 | |||
YH10W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 250 | 100 | |||
YH10W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 250 | 100 | |||
YH10W-24 | 24 | 19.5 | 82 | 72 | 62 | 250 | 100 | |||
YH10W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 250 | 100 | |||
YH10W-30 | 30 | 24.4 | 102 | 90 | 79 | 250 | 100 | |||
YH10W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 250 | 100 | |||

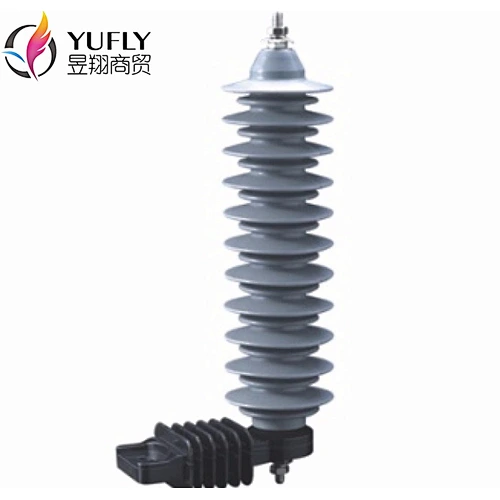

YH10W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 250 | 100 | |||
