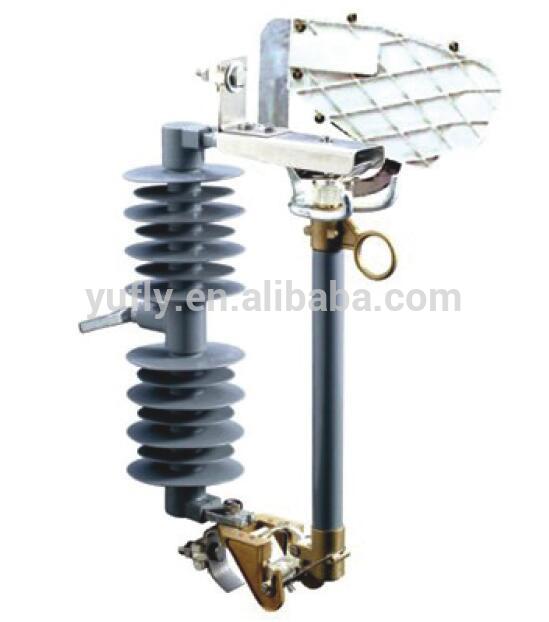

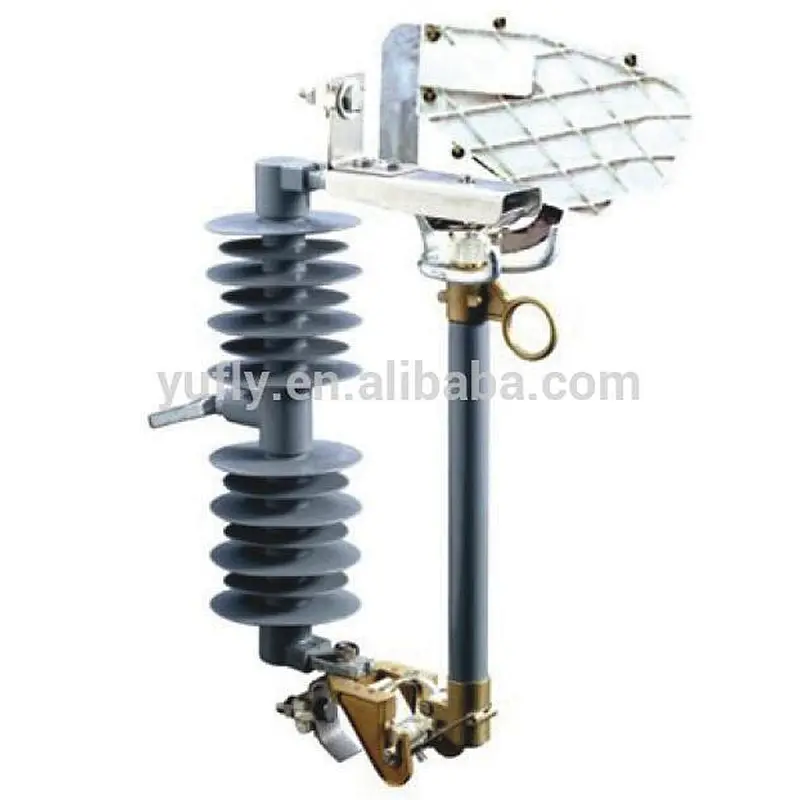

35kV 100A 200A silicon rubber polymer drop out cutout fuse expulsion fuse cutout
35kV 100A 200A silicon rubber polymer drop out cutout fuse expulsion fuse cutout

35kV 100A 200A silicon rubber polymer drop out cutout fuse expulsion fuse cutout

Model NO.
HRW12-35 fuse cutout
Price:
USD 25.00-35.00 / set
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
1000000 set / Month
Country of Origin
Ningbo
Quantity:
  • Place of Origin:CN;ZHE
  • Brand Name:YUFLY
  • Usage:High Voltage
  • Safety Standards:IEC
  • Breaking Capacity:High
  • Model Number:HRW12-35 fuse cutout
  • Rated voltage:35kv
  • Rated current:100A 200A
  • Creepage distance:720mm
  • Material:polymer/silion rubber

33KV cutout fuse 100A 200A

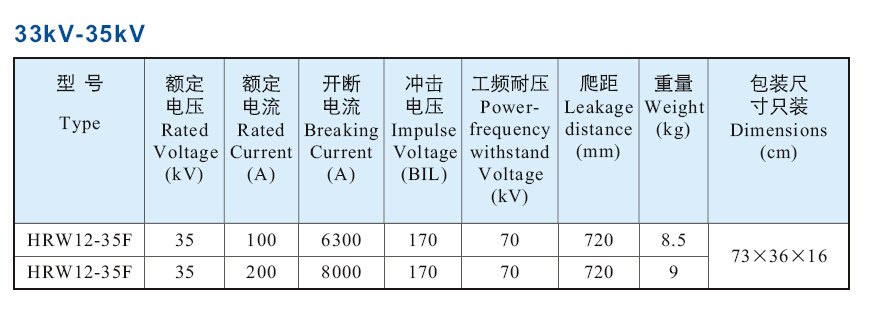

HRW12-35 data sheet.jpg

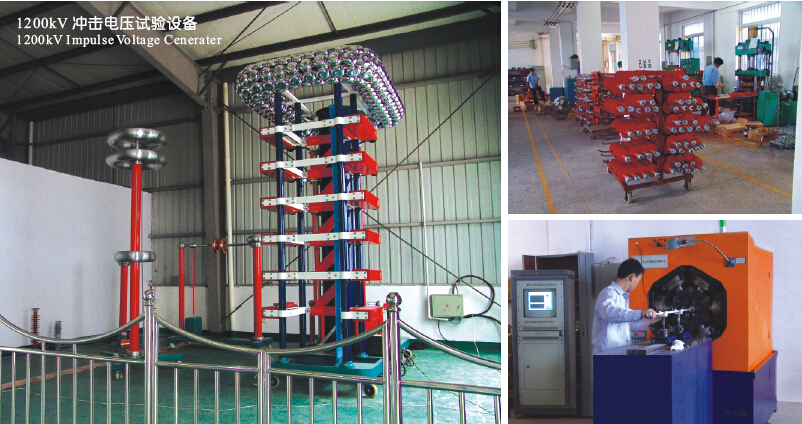

fuse cutout factory.jpg
