- Place of Origin:CN;ZHE
- Brand Name:OEM
- Usage:LOW VOLTAGE
- Safety Standards:IEC
- Breaking Capacity:High
- Model Number:XRNT
Application

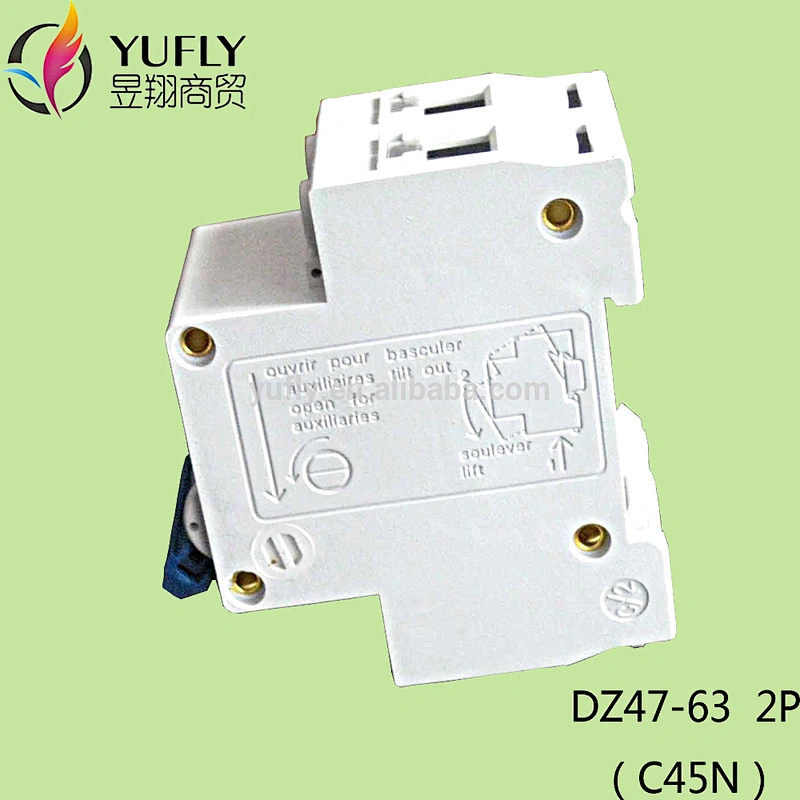

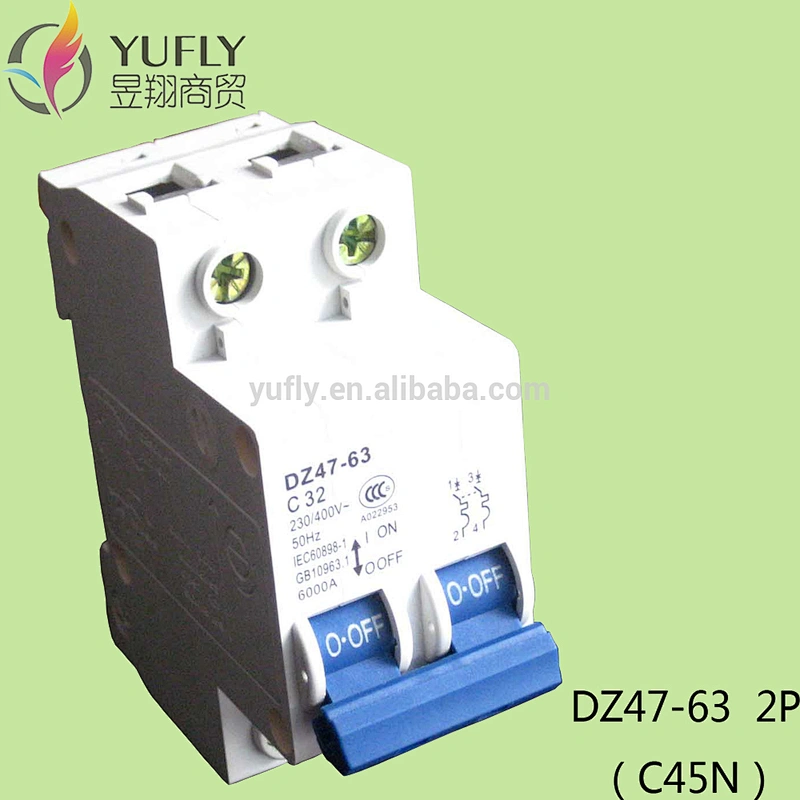

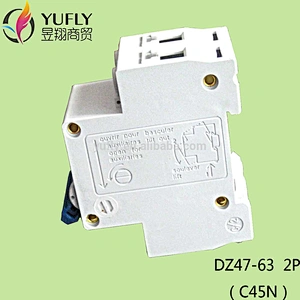

DZ47-63 is applicable to a line of AC50/60Hz,230V in single pole , 400Vin double ,three , four poles for protecting overload and short circuit, and rated current up t 63A. It can also be used for infrequent line conversion under the normal condition . The breaker is applicable to lighting distrbution system in industrial enterprise , commercially district, high-rise building and dwelling house . It conforms with the standards of IEC6089
Outer container size :42*24*33CM
Quantity of CTN :120pcs
Gross Weight :24KGs
Main Technical Parameter | ||||
Type | DZ47-63 | |||
Pole | 1P | 2P,3P,4P | ||
Rated current (A) | 6,10,16,20,25,32,40,50,63 | |||
Rates Voltage (V) | 230 | 400 | ||
Ambient temperature | -5℃~+40℃ | |||
Type of instantaneous release | C | D | C | D |
Rated short circuit breaking capacity (KA) | 1-32A:6 | 4 | 1-32A:6 | 4 |
Applicable Conducting Wire | |
Rated current (A) | Norminal cross section of wire mm² |
1-6A | 1 |
10A | 1.5 |
16,20A | 2.5 |
25A | 4 |
32A | 6 |
40,50A | 10 |
63A | 16 |
The Over-Current Portection Porperty | |||||
Ambient temperature | Initial status | Test current | Test time | Expexted result | Note |
30±20℃ | Cold position | 1.13In | t≤1h | Non-release | - |
Carried out immediately after previous test | 1.45In | t<1h | Release | - | |
Cold position | 2.55In | 1s | Release | Current smoothly rises to specified value within 5s | |
Cold position | 2.55In | 1s | Release | ||
-5±40℃ | Cold position | 3In | t≤0.1s | Non-release | Type B |
Cold position | 5In | t<0.1s | Release | Type B | |
Cold position | 5In | t≥0.1s | Non-release | Type C | |
Cold position | 10In | t<0.1s | Release | Type C | |
Cold position | 10In | t≥0.1s | Non-release | Type D | |
Cold position | 20In | t<0.1s | Release | Type D | |
