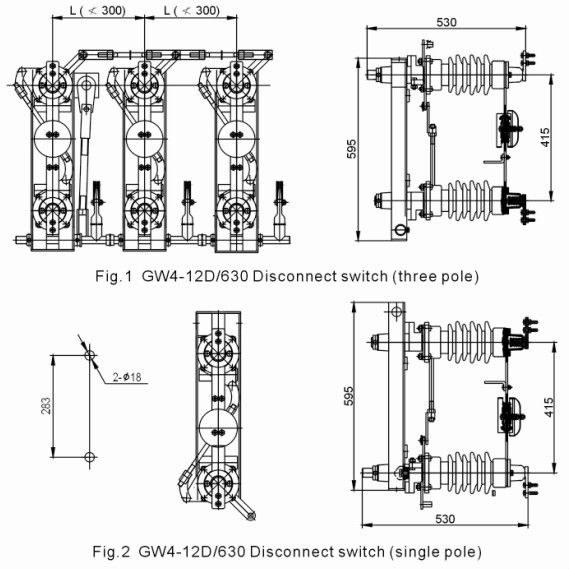

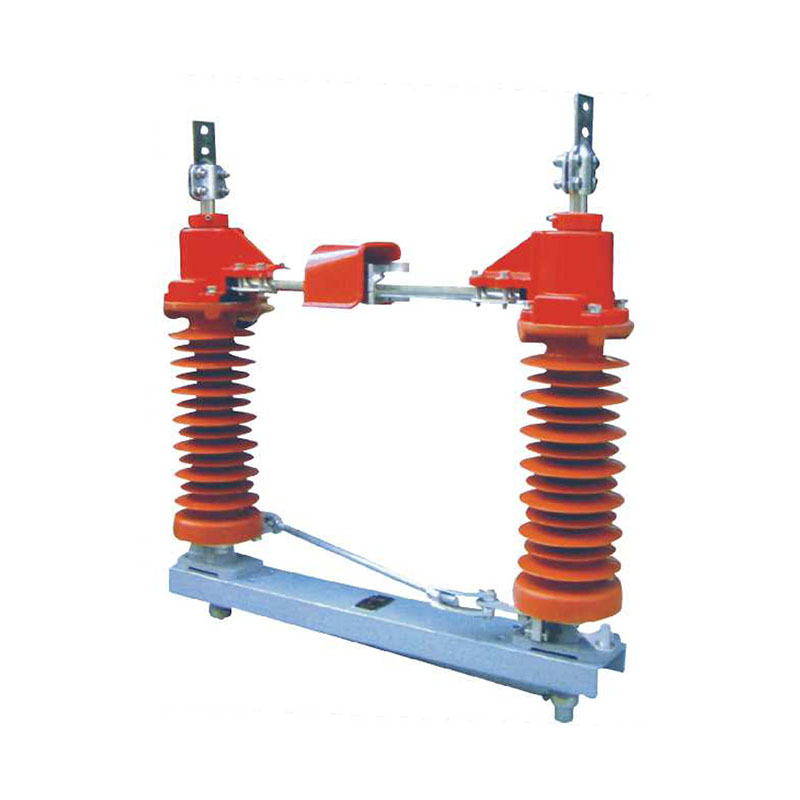

GW4-12 series Outdoor H.V. disconnector used for opening or closing circuits under voltage but no-load condition in 12kV outdoor electrical system. It has fixed drawhook and self-locking device, effect operation with insulating hook-stick. Anti-pollution type can effectively solve flash due to pollution during the operation to satisfy the requirement of users in strong pollution area.
Ser.No.
Item
Unit
Technical Data
1
Rated voltage
kV
12,40.5
2
Rated current
A
630
3
Rated frequency
Hz
50
4
Rated withstand current (peak value)
kA
50,63
5
Rated short time withstand current
kA
20,25
6
Rated duration of short time withstand current
Sec.
4
7
Main circuit resistance
μΩ
12kV
40.5kV
≤90
≤100
8
1min(dry)Power frequency withstand voltage(virtual value)
Between poles and Phase to ground / Across the isolating distance
KV
42/48
95/115
9
1min(wet)Power frequency withstand voltage(virtual value)
