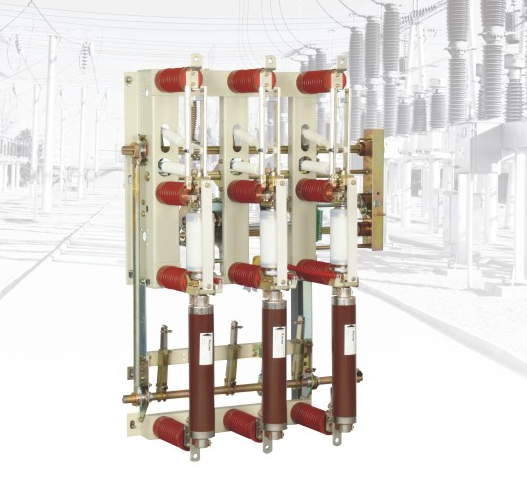

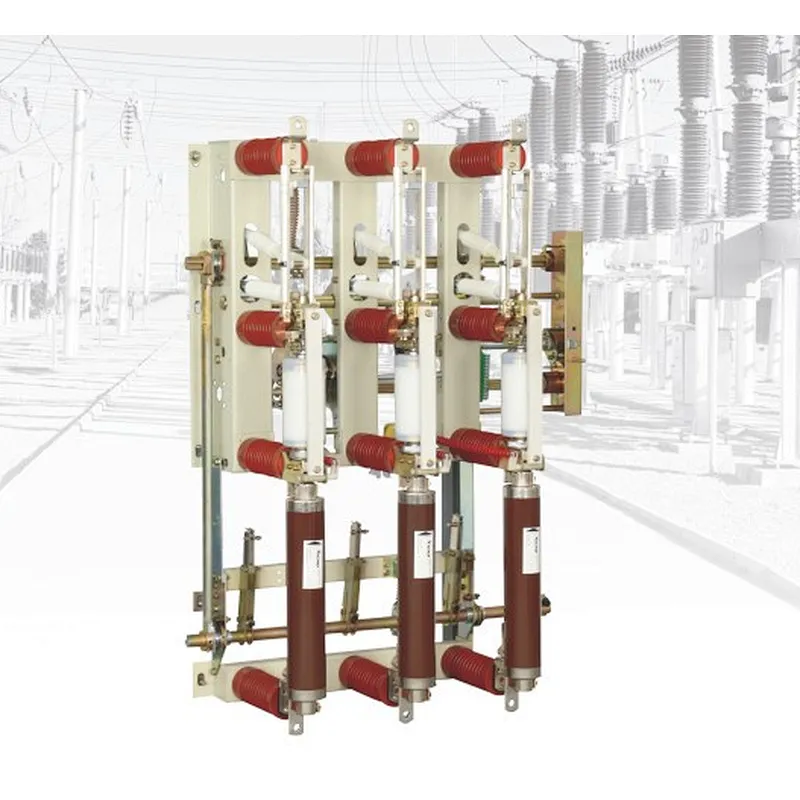

- Name:load break switch
- Type:High Voltage
- Rated current:630A
- Color:Grey+Red
- Rated voltage:12 KV
- Place of Origin:CN
- Brand Name:YUFLY
- Model Number:FN16A
- Max. Current:630A
- Max. Voltage:12kV
Technical Information | |||
Rated voltage | kV | 12 | 24 |
Rated current | A | 630 | 630 |
Rated power frequency | Hz | 50/60 | 50/60 |
Short circuit making capacity | kA Peak. | 50 | 31.5 |
Peak withstand current | kA Peak. | 50 | 50 |
Short time current 1 sec. 3 sec. | kA eff. | 25 20 | 20 |
Max. Fuse current | A | 200 | 200 |
To earth and between poles | kV | 42 | 65 |
Across isolating distance | kV | 48 | 79 |
Mechanism endurance Vauum interrupter | cycles |
| 10000 |
Main switch and Earth Switch | cycles | 2000 | 2000 |

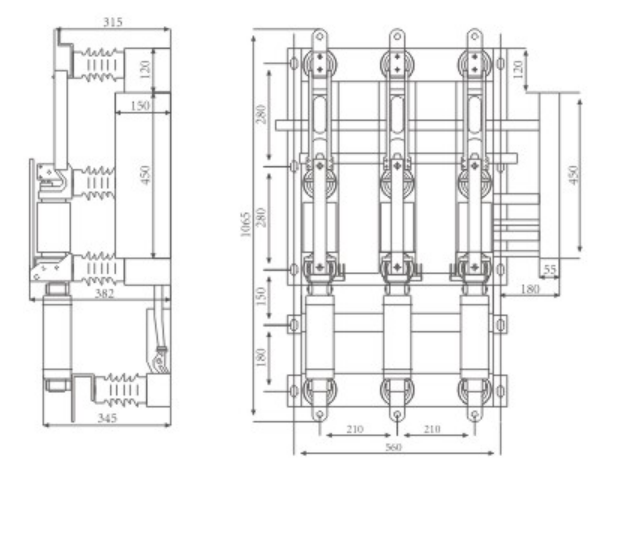

Overall Dimension
