LW36A-145 132kV 145kV High voltage three phase pole mounted Outdoor SF6 Circuit Breaker

Model NO.: LW36A-145 145kV SF6 circuit breaker
Price:: USD 15000.00-20000.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 500 set / Month
Country of Origin: Ningbo

Quantity:

Product Description

Place of Origin:CN;ZHE
Model Number:LW36A-145 145kV SF6 circuit breaker
Brand Name:YUFLY sf6 circuit breaker
Poles Number:3
Type:SF6 circuit breaker
Type:SF6 circuit breaker
Application:Outdoor pole mounted SF6 circuit breaker
Material:Stainless steel
Rated voltage:145kV 132kV
Rated current:630A 1250A 1600A 2000A 3150A

Product Description

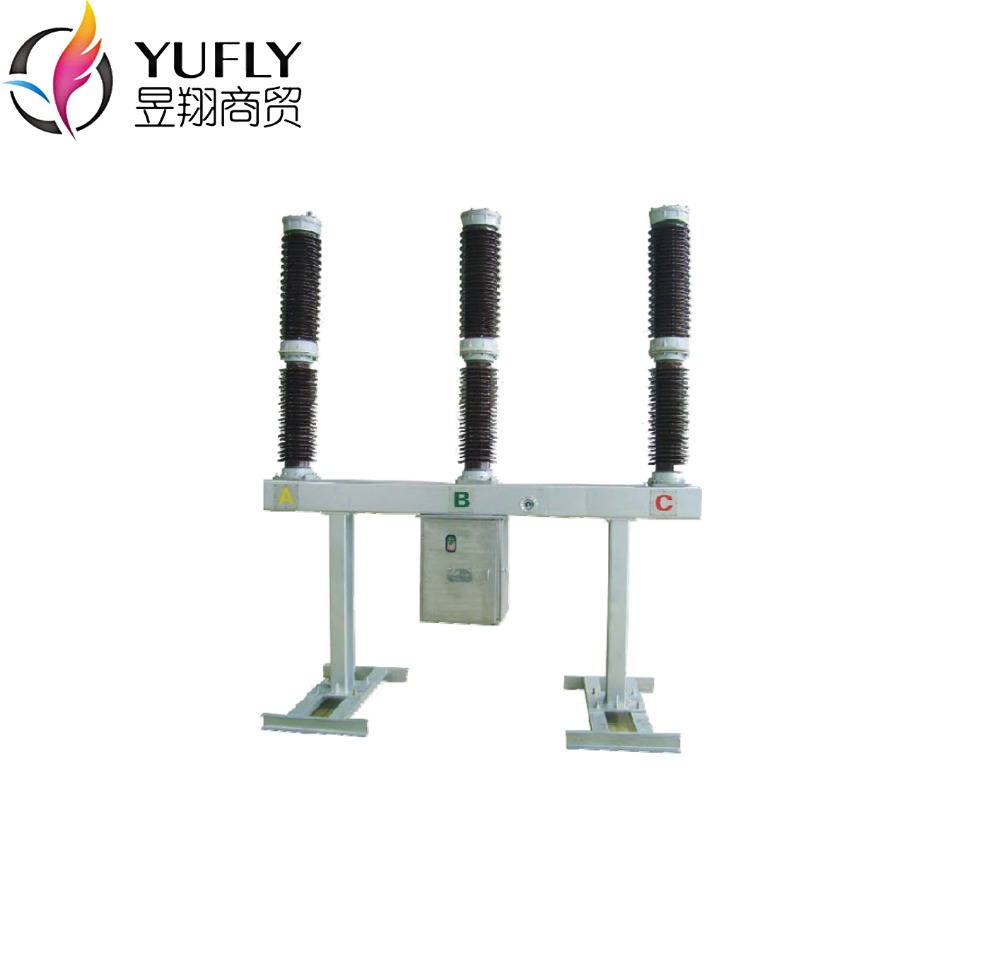

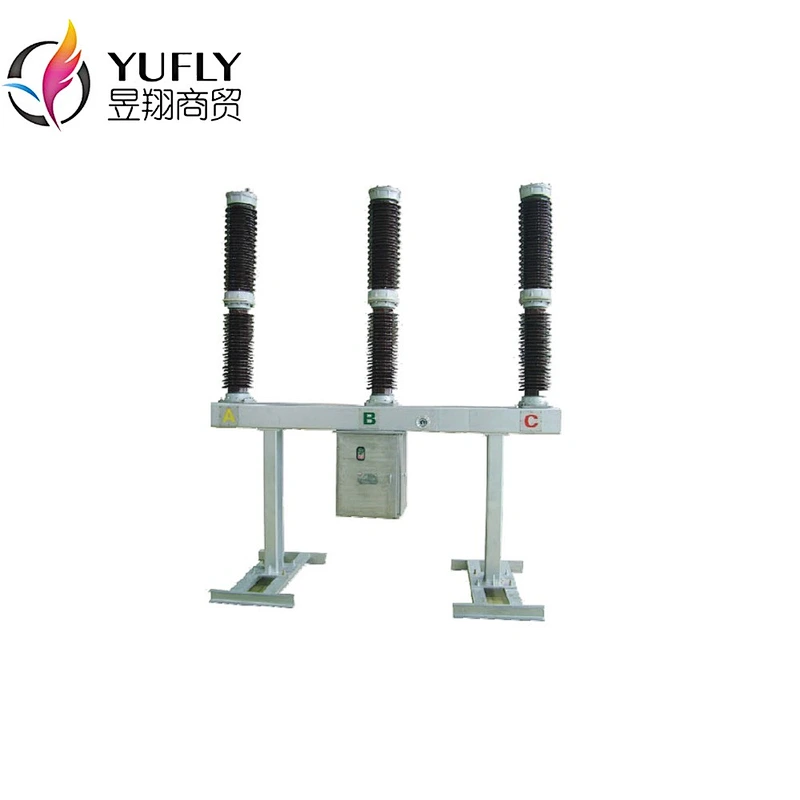

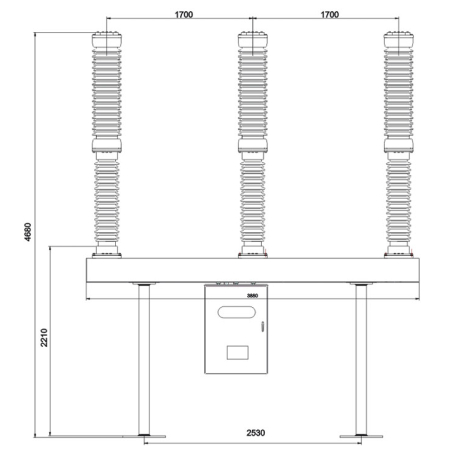

145kV high voltage pole mounted SF6 circuit breaker adopts three phase porcelain knob construction, outdoor design.

Three phase serve for one spring operation mechanism, locates in the middle, three phase ganged. It adopts SF6 gas as insulation and arcing medium, the SF6 gas should be connective in three poles at working, it adopts

pointer density relay to monitor pressure and density. Improve mechanical efficiency and Reduce operate power by the greatest extent, because of adopting auto-accumulation energy principle and making use of optimal

design.

No.	Item		Unit	Parameter
1	Rated voltage		kV	132/145
2	Rated power frequency withstand voltage(1min)	to ground		230/275
		between fracture		265/275
3	Rated lightning impulse withstand voltage	to ground		550/650
		between fracture		630/650
4	The power frequency withstand voltage when gas SF6 is zero pressure(5min)			95
5	Rated frequency		Hz	50
6	Rated current		A	3150
7	First pole to clear factor			1.5
8	Rated short circuit breaking current		kA	40/31.5
9	Rated short circuit making current			100/80
10	Rated short time withstand current			40/31.5
11	Rated peak withstand current			100/80
12	Rated short circuit continuous time		s	4
13	Rated out of synchronism breaking current		kA	10
14	Short line fault breaking current			36,30
15	Rated line charge breaking current		A	31.5
16	Rated operating sequence			O-0.3s-CO-180s-CO
17	Switch off time		ms	30±3
18	Switch on time			75±8
