- Rated voltage:11kV
- Rated current:100/200A
- Material:polyer/porcelain
- Usage:High Voltage
- Breaking Capacity:High
- Safety Standards:IEC
- Place of Origin:CN;ZHE
- Brand Name:YUFLY

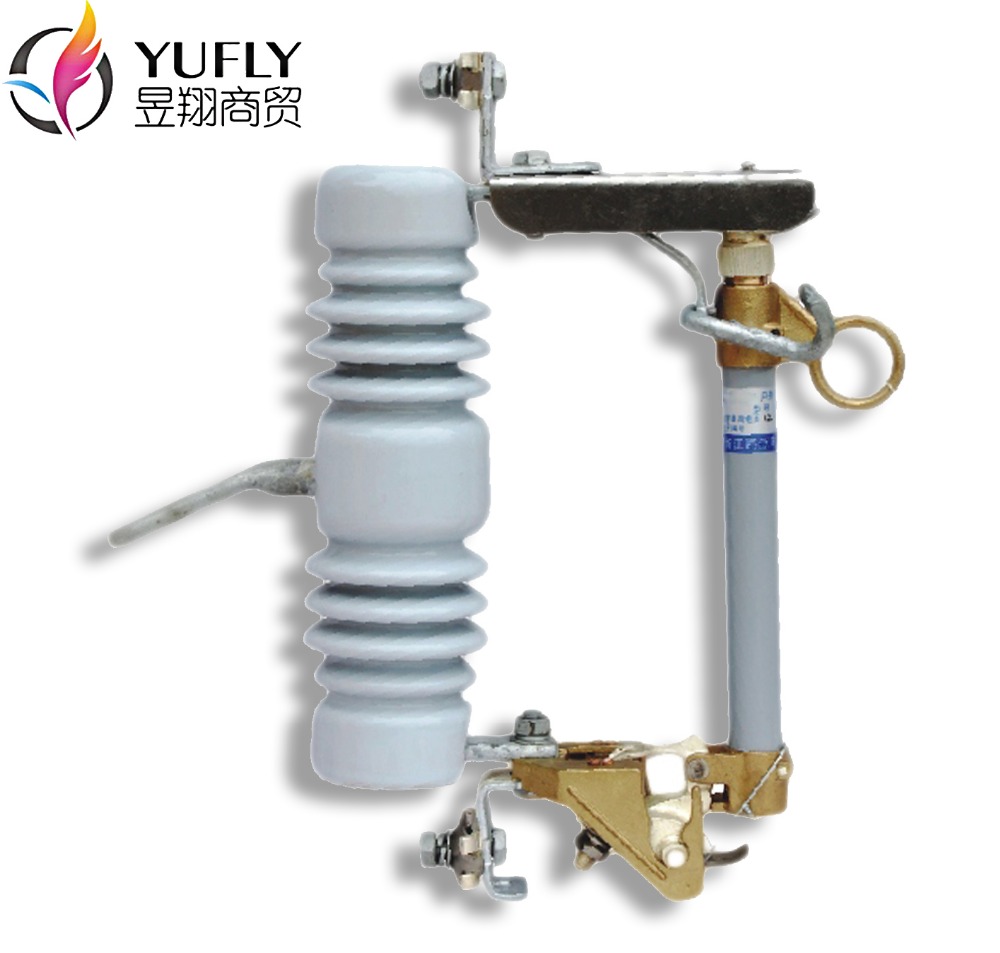

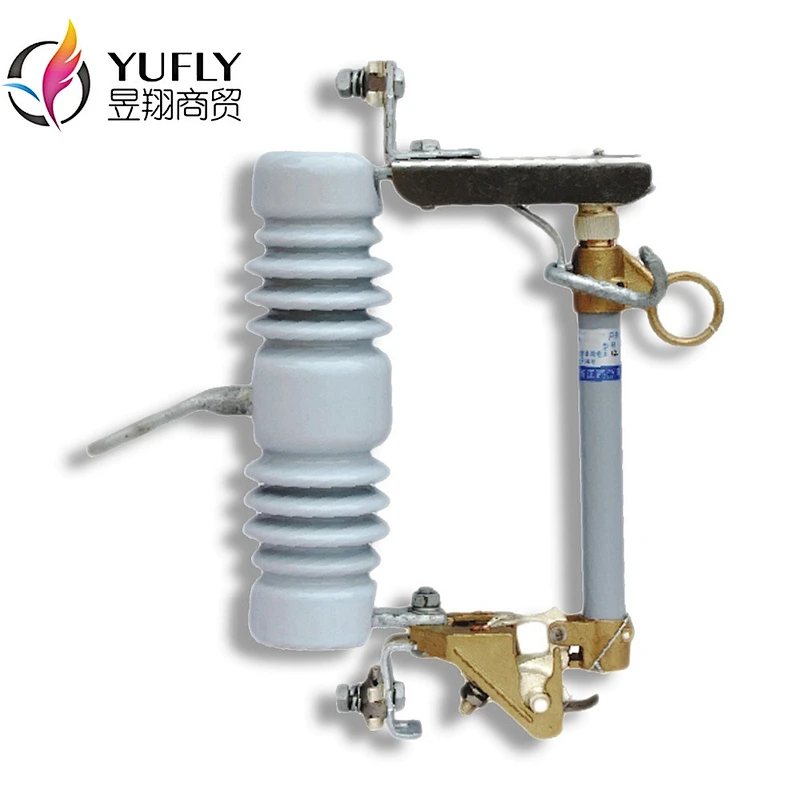

- Model Number:FC-11 fuse cutout
Rated voltage (kV) | Rated current (A) | Rated breaking current (A) | Rated impulse withstand voltage BIL (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
11 | 100 | 6000 | 110 | 42 | 340 | 8 | 49*27*11.5 |
11 | 200 | 8000 | 110 | 42 | 340 | 8 | 49*27*11.5 |
