- Rated voltage:33kV 36kV
- Rated current:100A 200A
- Creepage distance:720mm 900mm ,970mm
- Usage:High Voltage
- Breaking Capacity:High
- Safety Standards:IEC
- Place of Origin:CN;ZHE
- Brand Name:YUFLY
- Model Number:FC-33 fuse cutout

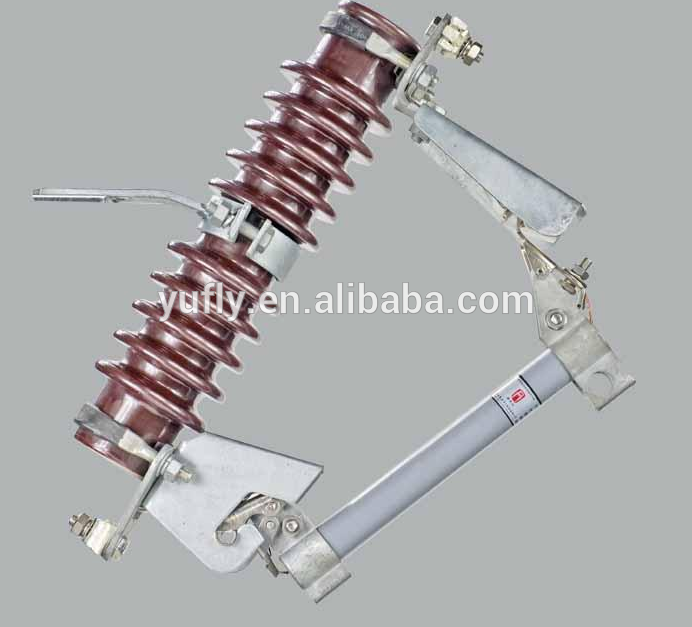

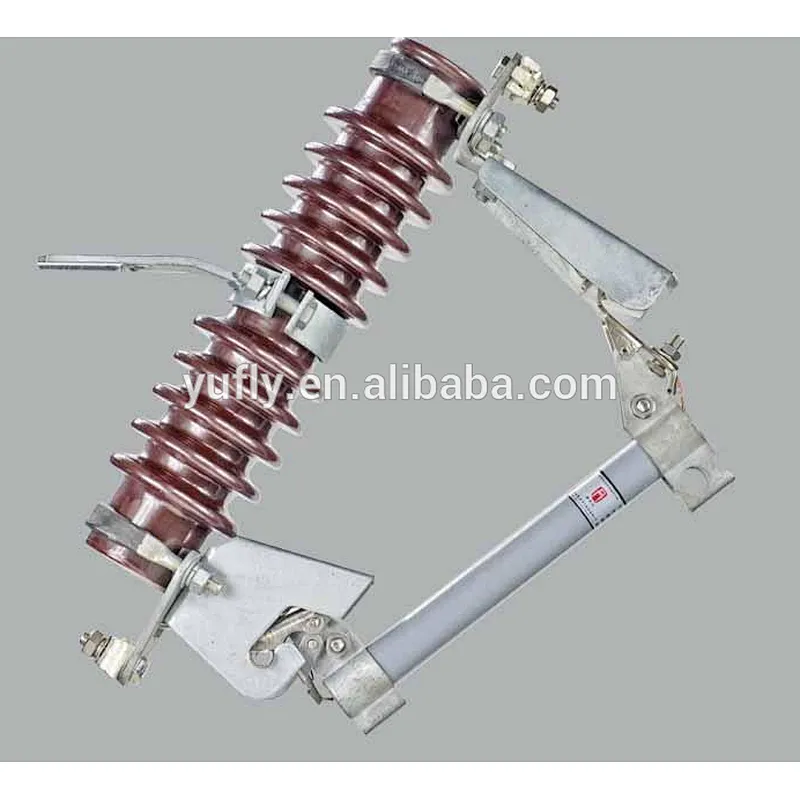

33V cutout fuse 100A 200A fuse cutout
Rated voltage (kV) | Rated current (A) | Rated breaking current (A) | Rated impulse withstand voltage BIL (kV) | Power frequency withstand voltage (kV) | Creepage distance (mm) | Weight (kg) | Dimension (cm) |
33 | 100 | 10000 | 170 | 70 | 720 | 15.5 | 57*38*14.5 |
33 | 200 | 12000 | 170 | 70 | 720 | 15.5 | 57*38*14.5 |
